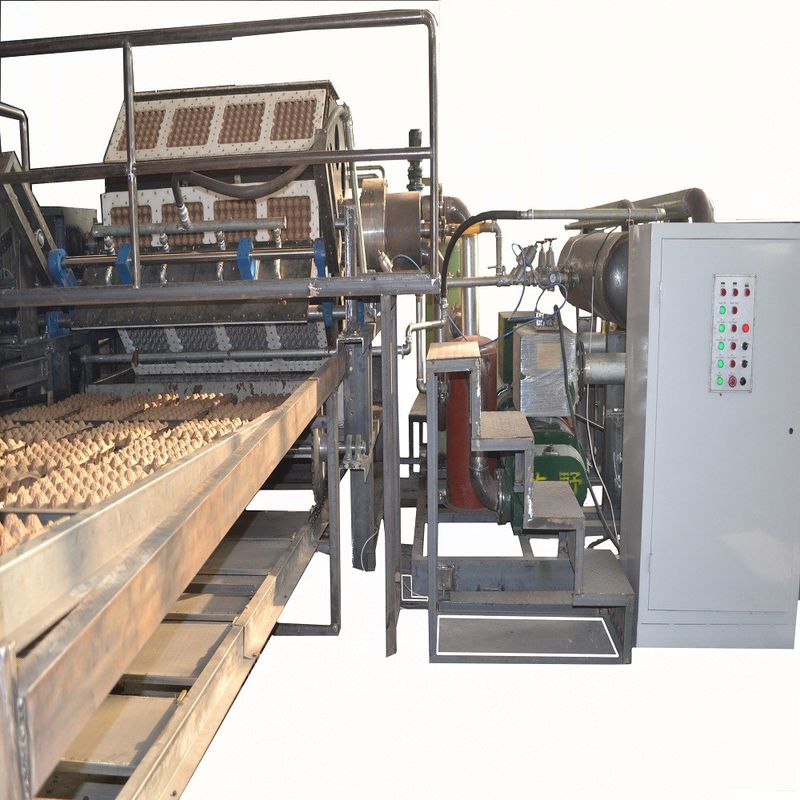

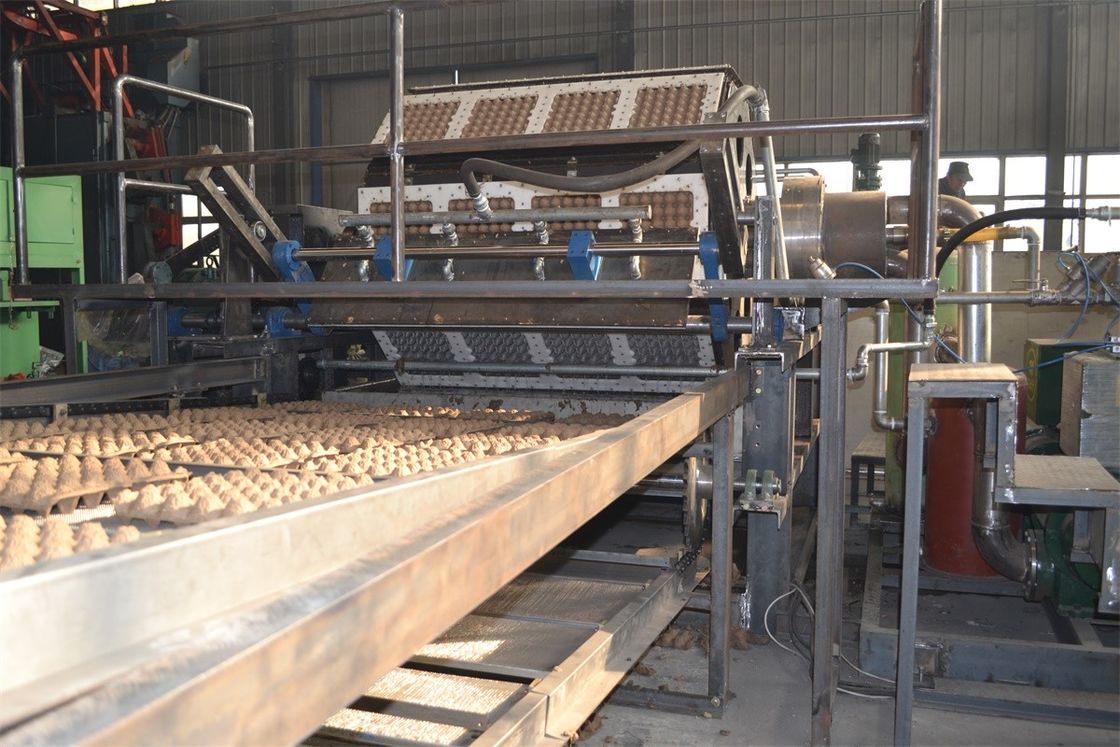

3000pcs/h Recycled Paper Egg Tray Machine / Egg Tray Production Line Big Capacity

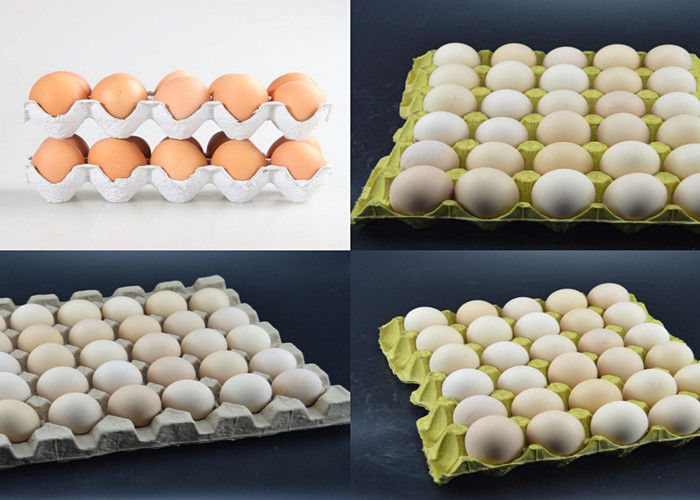

3000pcs/h Recycled Paper Egg Tray Machine / Egg Tray Production Line Big Capacity is usually used by customers who wants big capacity of the simple structure trays, such as egg trays, egg cartons, apple trays, fruit trays, coffee cup trays, wine trays, shoes trays,etc..
The whole machine production line is composed by:
1. pulping system: including the hydraulic pulper, pump, disk mill, water tank, pulp tank, mixer, etc..to make the wastepaper into pulp.
2. forming system: including the molding machine, molds, vacuum pumps, air compressor and electrical controller to make the pulp into wet trays.
3. drying system: including the oven, chains, trays, heating pipes, fans, boiler, etc..to dry the wet trays so they can be used directly.(customerized/Selectable)
Our machine uses waste paper as raw material for producing the egg trays.
Technical Data
| Egg Tray mould quantity |
32pcs (4*8) |
Container Required |
| Raw material |
Waste paper |
About 40ft*5 |
| Net weight per piece (gram) |
70g-75g |
| The volume of waste paper consumed |
225kg/h |
| The volume of water consumed |
0.6t/h |
| Natural gas consumption |
80m3/h-100m3/h |
| Electricity Power |
80kw |
| Workshop dimension |
Around 5000m2 |
| Egg tray capacity |
3000pcs/hour |
| Machine Weight |
43tons around |
| Egg tray Size |
295mm*295mm 30eggs |
Payment and Delivery
| Trade terms |
FOB Qingdao |
| Validity time |
Within 30days |
| Delivery time |
about 60 working days after receiving the deposit. |
| Payment term |
BY T/T 30%DEPOSIT+70%BALANCE. or 30% Deposit +70% Insight LC |
| Time of payment |
When the deposit is paid, the machine will begin to be produced. And the balance should be paid by the consignee (the buyer) before the delivery. |
| Warranty time |
Two years after the Egg tray machine received. |
| TERMS OF DELIVERY |
FOB Qingdao Port, China |
| Package |
In container |
| Certification |
CE
|
The complete egg tray production line includes basically 3 sections: pulping system, molding forming system and drying system. Some assistant equipments are required as well such as air compressor, vacuum pumps, hot pressing machine, burners, etc.; which are all made by China Famous Brand and Germnay Brand.
Except egg trays, this machine can also produce fruit trays, apple trays, paper cup trays, paper shoe trays and industrial packages trays,etc.
With lower cost investment, you can achieve big profit by our machine.
Our company advantages:
Rich experience in manufacturing
1. More than 20 years experience in designing and manufacturing machine.
2. Over 20 years experience in manufacturing the pulp molding equipment.
3. Famous factory in the Egg tray machine field in China.
The most complete product line
1. More than 20 kinds of pulp molding equipment specifications, for Egg tray, Egg carton, Fruit Tray, Cup Carrier,Medical Care Product, Industrial package.
2. Fully-automatic production line and semi-automatic production line.
3. Different capacity can meet all the customers’ needs.
Advance processing technology
The most reliable choice for superb performance in the long run.
High Quality
1. Every process strictly controlled.
2. International brand and Germany brand for control parts.
3. Delivery after machine trail production.
4. England technology
