WANYOU WY-1 Rotary Egg Tray Making Machine 2000-2500 pcs/h Recycled Paper Pulp Molding for Serbian Poultry Farm Egg Tray Production Line

WANYOU WY-1 Rotary Egg Tray Making Machine 2000-2500 pcs/h Recycled Paper Pulp Molding for Serbian Poultry Farm Egg Tray Production Line

Rotary egg tray making machine

Recycled paper pulp egg tray machine

Egg tray production line with warranty

محل منبع:

جینان ، شاندونگ ، چین

نام تجاری:

Wanyou

گواهی:

CE, ISO 9001:2015

شماره مدل:

WY-F1

تماس با ما
درخواست نقل قول
جزئیات محصول
نوع ماشین:
دستگاه شکل دهی سینی تخم مرغ درام چرخشی WY-F1
ظرفیت تولید:
2000-2500 قطعه در ساعت
سیستم کنترل:
PLC اتوماتیک با صفحه نمایش لمسی
روش شکل دهی:
شکل دهی مداوم درام دوار جذب خلاء
روش تخریب:
تخریب اتوماتیک پنوماتیک
توان کل:
55 کیلو وات
مواد خام:
کاغذ باطله، کارتن بازیافتی، روزنامه، ضایعات کاغذ کرافت
مصرف کاغذ:
160-180 کیلوگرم در ساعت
پیکربندی قالب:
قالب چرخشی 3x4 با درج های قابل تعویض
محصولات تمام شده:
سینی تخم مرغ، کارتن تخم مرغ، سینی میوه، جا لیوان قهوه، سینی های کاغذی صنعتی
سرعت عملیات:
18-25 چرخه تشکیل در دقیقه
کار مداوم:
پشتیبانی 24 ساعته بدون وقفه
صنایع کاربردی:
مزرعه، بسته بندی، مواد غذایی، صنعتی
برجسته کردن:

Rotary egg tray making machine

,

Recycled paper pulp egg tray machine

,

Egg tray production line with warranty

شرایط پرداخت و ارسال
مقدار حداقل تعداد سفارش
1 مجموعه
قیمت
USD 16,700 / Set
جزئیات بسته بندی
در ظروف صادراتی با بسته بندی ضد رطوبت و تثبیت قاب فولادی
زمان تحویل
65 روز کاری پس از پرداخت سپرده
شرایط پرداخت
T/T، L/C، Western Union، MoneyGram
قابلیت ارائه
10 ست در ماه
توضیحات محصول

WANYOU WY-1 Rotary Egg Tray Making Machine — Built for Serbian Poultry and Packaging Producers Egg Tray Production Line

The WANYOU WY-F1 represents the next generation of automatic pulp molding technology, specifically configured for Serbian businesses seeking reliable and cost-effective egg tray production. As an ideal equipment choice for Balkans packaging manufacturers, this machine combines robust engineering with user-friendly PLC automation to deliver consistent output with minimal operator intervention.

Why Serbian Producers Choose the WANYOU WY-F1

In today's competitive Balkans packaging market, Serbian poultry farms and packaging workshops need equipment that balances affordability with industrial-grade reliability. The WY-F1 addresses this directly: it transforms locally available waste paper and recycled cartons into high-quality biodegradable egg trays at 2000-2500 pieces per hour while keeping energy consumption to a manageable 55KW and requiring only 4-5 workers for full operation.

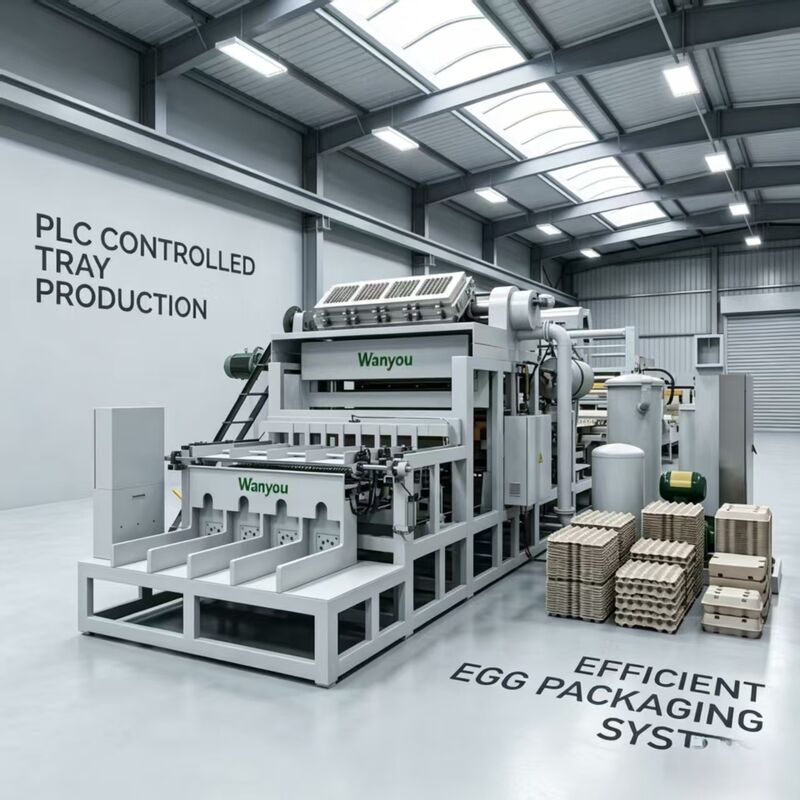

WANYOU WY-1 Rotary Egg Tray Making Machine 2000-2500 pcs/h Recycled Paper Pulp Molding for Serbian Poultry Farm Egg Tray Production Line 0

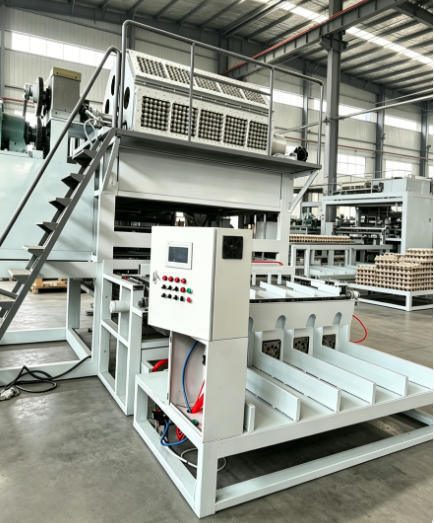

WANYOU WY-1 Rotary Egg Tray Making Machine 2000-2500 pcs/h Recycled Paper Pulp Molding for Serbian Poultry Farm Egg Tray Production Line 1

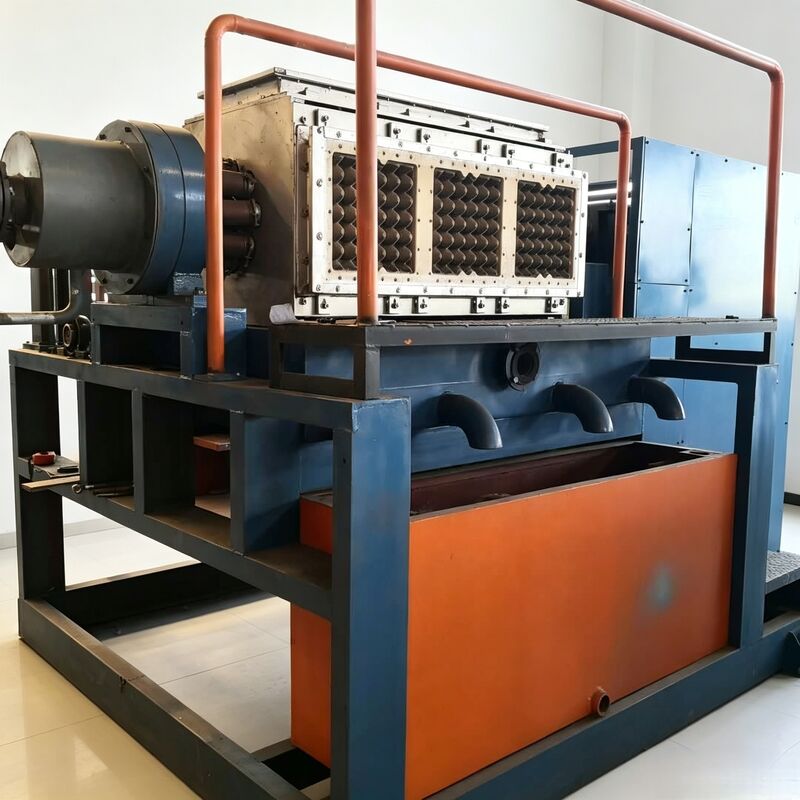

WANYOU WY-1 Rotary Egg Tray Making Machine 2000-2500 pcs/h Recycled Paper Pulp Molding for Serbian Poultry Farm Egg Tray Production Line 2

WANYOU WY-1 Rotary Egg Tray Making Machine 2000-2500 pcs/h Recycled Paper Pulp Molding for Serbian Poultry Farm Egg Tray Production Line 3

WANYOU WY-1 Rotary Egg Tray Making Machine 2000-2500 pcs/h Recycled Paper Pulp Molding for Serbian Poultry Farm Egg Tray Production Line 4

Technical Specifications

Parameter Specification
Model WANYOU WY-F1
Production Capacity 2000-2500 pieces per hour
Control System PLC automatic control with touch screen interface
Forming Method Rotary drum vacuum adsorption continuous forming
Demolding Automatic pneumatic demolding system
Total Power 55KW
Machine Weight 4,700 kg
Raw Material Waste paper, recycled carton, newspaper, kraft paper scraps
Paper Consumption 160-180 kg/hr
Labor Required 4-5 workers
Mold Configuration 3x4 rotary mold with replaceable inserts
Drying Options Brick conveyor belt dryer, metallic dryer, or sun drying
Operating Speed 18-25 forming cycles per minute
Continuous Operation Supports 24-hour uninterrupted production

Key Advantages for the Serbian Market

  • Low-Cost Raw Materials: The machine processes waste paper, old newspapers, and discarded cartons — materials abundantly available at minimal cost in Serbia. This creates a circular economy advantage that sets Serbian producers apart from competitors relying on virgin materials or imported packaging.
  • Rapid Return on Investment: Producing 2000-2500 egg trays per hour from nearly free raw materials generates excellent margins. Serbian businesses can typically recover their equipment investment within 12-18 months of full-capacity operation.
  • Multi-Purpose Production: Interchangeable molds expand production capabilities beyond standard 30-cell egg trays. The same machine can produce egg cartons with 6, 12, or 18 cells, fruit trays for apples and pears, coffee cup holders, shoe trays, and custom industrial packaging — maximizing revenue diversification for Serbian entrepreneurs.
  • Eco-Friendly Compliance: All finished products are 100% biodegradable and compostable, meeting both local Serbian environmental regulations and international export standards. This is particularly valuable for Serbian businesses targeting EU and North American markets with sustainable packaging requirements.
  • Low Technical Barrier: The intuitive PLC touch screen control panel requires no specialized engineering background. Pulp mixing, vacuum forming, automatic demolding, and stacking are all managed automatically — Serbian operators can master the system with minimal training.

Flexible Payment and Delivery Terms

Condition Details
Price (EXW) USD 16,700 per set
Minimum Order 1 set
Payment Terms T/T 40% deposit plus 60% balance before delivery
Delivery Time Approximately 65 working days after deposit received
Supply Capacity 10 sets per month
Warranty 12 months full machine warranty with remote technical support
Packaging Export-grade containerized shipping with moisture protection

About Jinan Wanyou Packing Machinery Factory

Established in 2003, Wanyou has dedicated over two decades to perfecting paper pulp molding technology.

Based in Jinan, Shandong, China, the factory employs 50-60 skilled technicians and exports 70-80 percent of its production to over 30 countries worldwide.

Our philosophy — Quality First, Customer First, Turn Your Waste Into Money — drives every machine we build.

With annual revenues of USD 1-5 million, we combine manufacturing efficiency with personalized customer service.


Serbian businesses interested in the WANYOU WY-F1 egg tray machine are welcome to contact Cindy at +86 15665703348 on WhatsApp or WeChat for detailed specifications, factory videos, client references, and a customized quotation for your production requirements.
